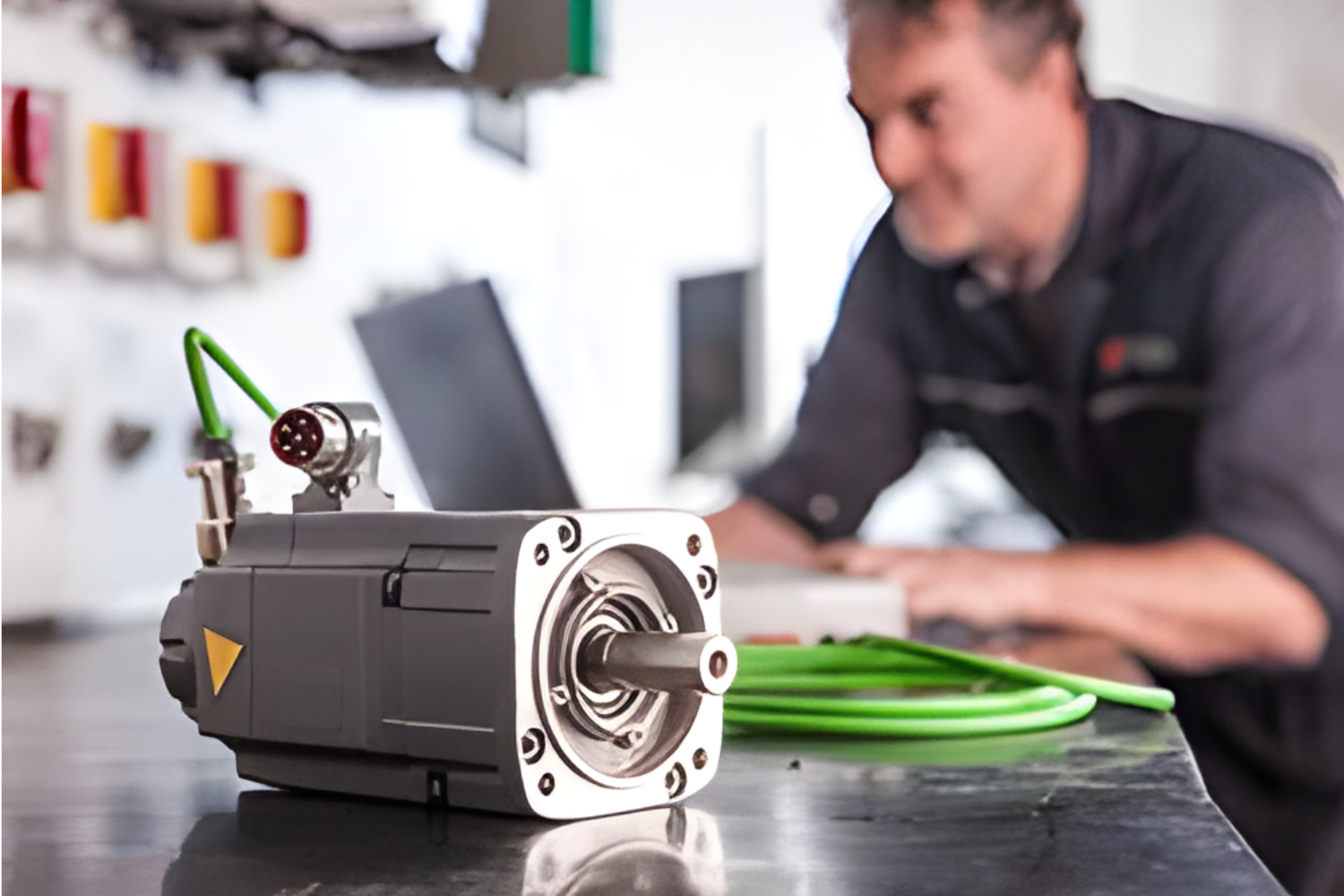

What Siemens Servo Motor Repair Technicians Look for in Burned or Shorted Windings
When a Siemens servo motor fails, one of the most common causes is a problem in the windings - especially if they are burned, shorted, or show signs of insulation damage. Skilled technicians who handle Siemens servo motor repair in Canada know exactly what to look for when diagnosing these issues. They don’t just rely on visible signs; they use a combination of experience, testing methods, and attention to fine details to identify the root cause and restore the motor’s performance.
Understanding Why Windings Fail
Windings are the heart of any servo motor. They generate the magnetic field that makes precise motion control possible. Over time, however, they can fail due to electrical overstress, overheating, or insulation breakdown. In Siemens servo motor repair in Canada, technicians often encounter winding failures caused by continuous overloads, voltage spikes, or contamination from dust and oil.
Even minor insulation degradation can trigger a short circuit between turns or phases. Once that happens, the motor’s performance drops rapidly — torque becomes unstable, feedback sensors misread position, and the motor may emit a burning smell. Understanding why the failure occurred is the first step toward repairing it effectively and preventing future issues.
Visual Inspection: Reading the Early Signs
A detailed visual inspection is always the technician’s starting point. Burn marks, darkened varnish, melted insulation, or discoloured copper are strong indicators of winding failure. The smell of burned insulation also provides a quick clue.
During Siemens servo motor repair in Canada, technicians disassemble the motor carefully to avoid disturbing the damaged areas. They look for heat trails, insulation cracks, or mechanical rubbing that could have caused shorting. Contamination from oil or moisture often appears on the stator surface - another warning sign that can’t be ignored.
Sometimes, the damage looks minor but hides deeper issues inside the coils. That’s why visual inspection alone is never enough.
Electrical Testing: Confirming the Damage
Once the motor has been visually checked, the next stage involves detailed electrical testing. Using insulation resistance testers (megohmmeters), technicians measure how well the winding insulation resists electrical leakage. Low readings typically point to insulation failure.
A surge comparison test is another vital method. It helps detect shorted turns that might not be visible. By comparing waveforms from each phase, technicians can pinpoint differences that indicate winding defects. Additionally, resistance and inductance measurements help confirm whether all windings are balanced.
This combination of tests ensures that even hidden short circuits or partial discharges are detected before rewinding begins.
Determining the Root Cause Before Rewinding
A professional repair doesn’t stop at replacing damaged coils. Skilled technicians want to know why the windings burned out in the first place. Was it due to an overloaded servo drive? Was there a cooling fan malfunction? Or perhaps a misalignment issue that caused the motor to overheat?
During Siemens servo motor repair in Canada, determining the root cause is critical to ensuring that the repaired motor won’t fail again soon. This analysis often involves checking bearing conditions, verifying feedback alignment, inspecting connectors for arcing, and assessing the condition of the stator core.
Only after confirming that all other parts are in proper condition do technicians move forward with the rewinding process.
Rewinding and Testing for Reliable Performance
Rewinding is a precise job that requires both skill and patience. The new copper wire must match the original specifications of the Siemens servo motor to maintain torque and speed accuracy. The coils are wound, insulated, and varnish-coated before curing in an oven to ensure long-lasting durability.
Once rewinding is complete, the motor undergoes final testing, including insulation, surge, and load performance checks to ensure it meets OEM standards. The motor is then reassembled, balanced, and run-tested to verify smooth, vibration-free operation.
To Sum Up
Diagnosing burned or shorted windings isn’t just a repair routine; it’s a detailed investigation that combines science, skill, and intuition. Expert technicians performing Siemens servo motor repair in Canada understand that every detail matters. A single overlooked spot of insulation damage could lead to another breakdown. In the end, successful Siemens servo motor repair is mainly about restoring precision, reliability, and performance to the level that Siemens designed it for. That’s what makes a true professional stand apart in the world of servo motor repair.
